A new standard for lightweight design, innovation and performance. G4 delivers an award-winning combination of the ride comfort and dynamics of a full-size bike with all the versatility of a folding e-bike. The ultimate urban travel companion.
Mudguards and lights included as standard.
All-new G4drive™ Electric Motor
Smooth and quiet, Gocycle’s bespoke new G4drive™ electric motor delivers more torque with class leading compact packaging.
Injection Moulded Carbon Fibre Mid-Frame
This central component of G4i’s monocoque chassis has the important job of connecting the hydroformed aluminium front frame and Gocycle’s patented magnesium Cleandrive.
Carbon Fibre Single-Sided Front Fork
The Gocycle G4’s all-new single-sided carbon front fork houses the fully-integrated G4drive™ electric motor. Its smooth and flowing lines help to reduce stress and overall weight.
Integrated USB Port
1amp USB charger for phone charging on the go.
Low Energy Bluetooth
Improved phone and Gocycle app connectivity.
| Frame Colour |
G4 Blue, Matte Black, White |
| Frame Material |
Hydro-formed 6061 T6 alloy front frame, matte black injection moulded composite mid-frame and injection moulded magnesium Cleandrive |
| PitstopWheel® |
Magnesium with center hub mount |
| PitstopWheel® Colour |
Gloss Black |
| Motor Drive Control |
Pedal Torque Sensing |
| Daytime Running Light (DRL)** |
No |
| Smart Device Connectivity*** |
GocycleConnect® App via wireless Bluetooth® |
| Riding Modes |
City, Eco, On-Demand, Custom. Multiple, programmable through GocycleConnect® App |
| Electric Drive Speed**** |
20 mph / 25 kph |
| Range |
Up to 65km (40 miles), depending on pedal input |
| Motor***** |
Gocycle proprietary front hub motor, G4drive with traction control 500 watt US / 250 watt EU continuous |
| Battery****** |
Quick removable lithium ion: 8.1Ah, 36V, approx 300 Wh |
| Charging Time |
3 hours |
| Motor Controller |
Gocycle proprietary |
| Handlebar Display |
LED Fuel Gauge or with Smart Device and GocycleConnect® App |
| Shifting |
Mechanical Microshift |
| Transmission |
Patented Cleandrive® Shimano Nexus 3-speed |
| Gear Inches |
1st=39.1 in, 2nd=53.3 in, 3rd=72.5 in |
| Gear Development |
1st=3.1 m, 2nd=4.3 m, 3rd=5.8 m |
| Brakes |
Hydraulic disk, front and rear |
| Tyres |
Gocycle Tyre (406-60, 20 x 2.25 in) |
| Front Motor Fork |
Gocycle proprietary, single-sided, Carbon Fibre, fixed |
| Rear Suspension |
Gocycle Lockshock 25mm (1 in) travel |
| Saddle |
Velo Sport |
| Seat Post |
34.9 mm Aluminium |
| Pedals |
Gocycle Folding Standard |
| Grips |
Gocycle Sport Ergo |
| Frame Size and Fit |
Universal Vgonomic |
| Minimum Saddle Height******** |
880mm (34.5") |
| Handlebar Stem |
Quick Folding |
| Head Angle |
70° |
| Seat Tube Angle |
68° |
| Wheelbase |
1065mm (42 in) |
| Bottom Bracket Height |
275mm (11.5 in) |

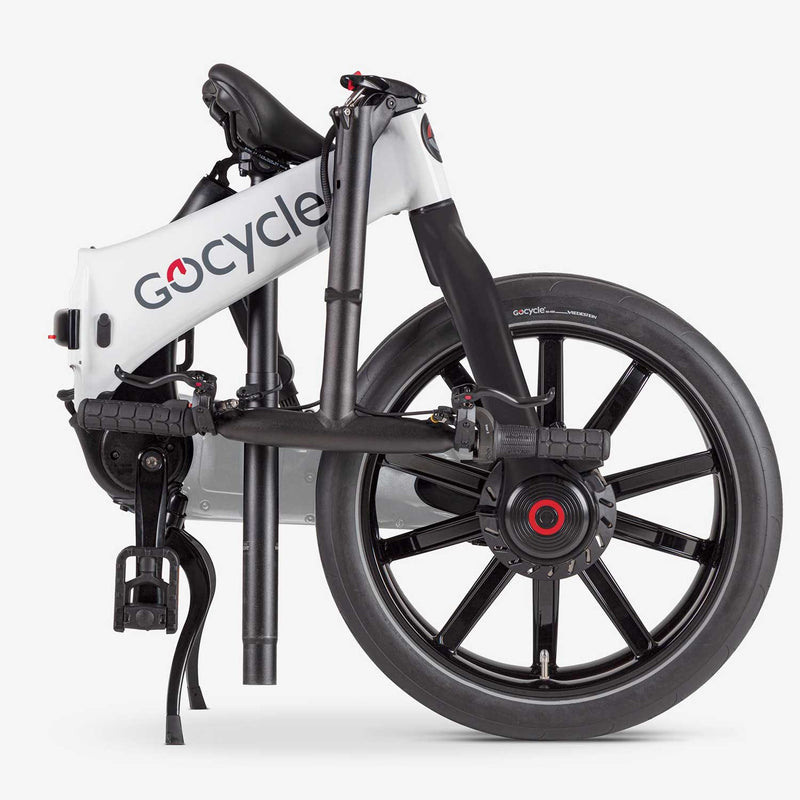

| Folding Method |
Fast Folding frame and handlebar |
| Stowable Dimensions |
Kickstand down: L830mm x W390mm x H750mm (L32.7in x W15.3in x H29.5in) with folding pedals folded. Kickstand up: L880mm x W390mm x H615mm (L34.6in x W15.3in x H24.2in) with folding pedals folded |
| Approximate Weight |
17.6kg (38.8 lbs) including kickstand & including pedals |
| Maximum Rider Weight******* |
100kg (220 lbs), including clothing and luggage |
*Technical specifications subject to change without notice. ** The purpose of the DRL is to enhance visibility of the Gocycle to other road users only. It is not intended to be a substitute for front and rear lights and should be accompanied with an additional set of front and rear lights approved for the territory you are riding. We recommend that you consult the relevant national safety organization or a reputable cycle dealer on what the minimum recommended lighting requirements are in your particular country or region. ***Electric bicycle speed regulations vary by country consult your local authority for information. ****Electric bicycle motor regulations vary by country consult your local authority for information. *****Battery capacity and performance may vary from battery pack to battery pack. ******This product has been designed with a maximum recommended weight limit of 100kg (220lbs) for the rider, clothing and all luggage, and is intended for use on paved roads. For rider and luggage weight 100-115kg (220-250lbs): riding style, road condition, tire pressures and luggage position may reduce product service life. Luggage weight should not exceed 10% of total rider and luggage weight. Never exceed rider and luggage weight of 115kg (250lbs) at any time. Exceeding this limit will void all warranties and may result in the product being unsafe for operation. ********The minimum saddle height can vary when a different saddle is installed. Gocycle also offers a compact seatpost which reduces the minimum seatpost height by 70mm. Last updated 08 March 2021 The GocycleConnect 7.0 app supports iOS 8.0 and above on iPhone 4s, iPhone 5, iPhone 5s, 6, 6 plus, 6s, 6s plus, 7, 7 plus, 8, 8 plus, iPhone SE, and iPhone X, XR, XS. The GocycleConnect 7.0 app for Android supports Android versions 4.0, 4.1, 4.2, 4.3, 4.4, 5.0, 5.1, 6.0, 7.0, 7.1, and 8.0 on 11,247 Android devices (and unsupported on 3,125 Android devices).
